Description

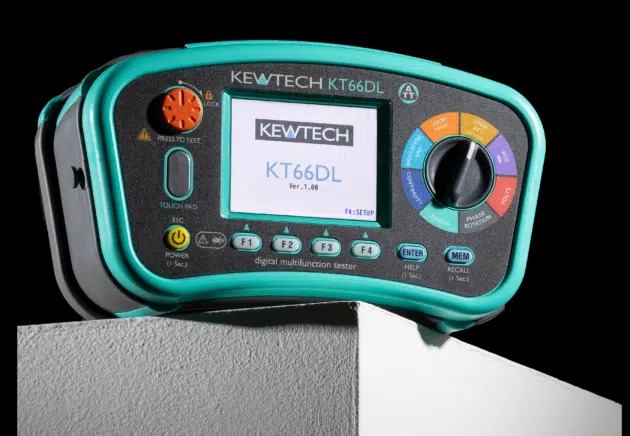

The KT66EVA multifunction tester is your go to solution for EV charge point commissioning.

This kit provides a simple solution for all installation testing, especially those with electrical vehicle charging points. As well as the comprehensive KT66DL multifunction tester, this kit comes complete with the KEWEVA…the most straight forward EV charge point adapter on the market with no awkward cable.

You can download the KEW REPORT software for the KT66DL here…Download Software.

Key Benefits
Large colour dot matrix screen
Established easy to use interface with one rotary dial and four function keys
Includes KEWEVA adapter for simple testing EV charging points
Simultaneous display of L-N, L-N, L-E voltage (TRMS)
Max Zs tables for current and old standards
Comprehensive RCD function including type EV & B and variable RCD test
Three modes of starting a test: single press of the test button, continuous testing and by test button in the test probe
Advanced memory – assigns DB, circuit no. ad type of test i.e. Zs or Ze
Help display
Touch voltage pad with selectable limits
Padded neck strap

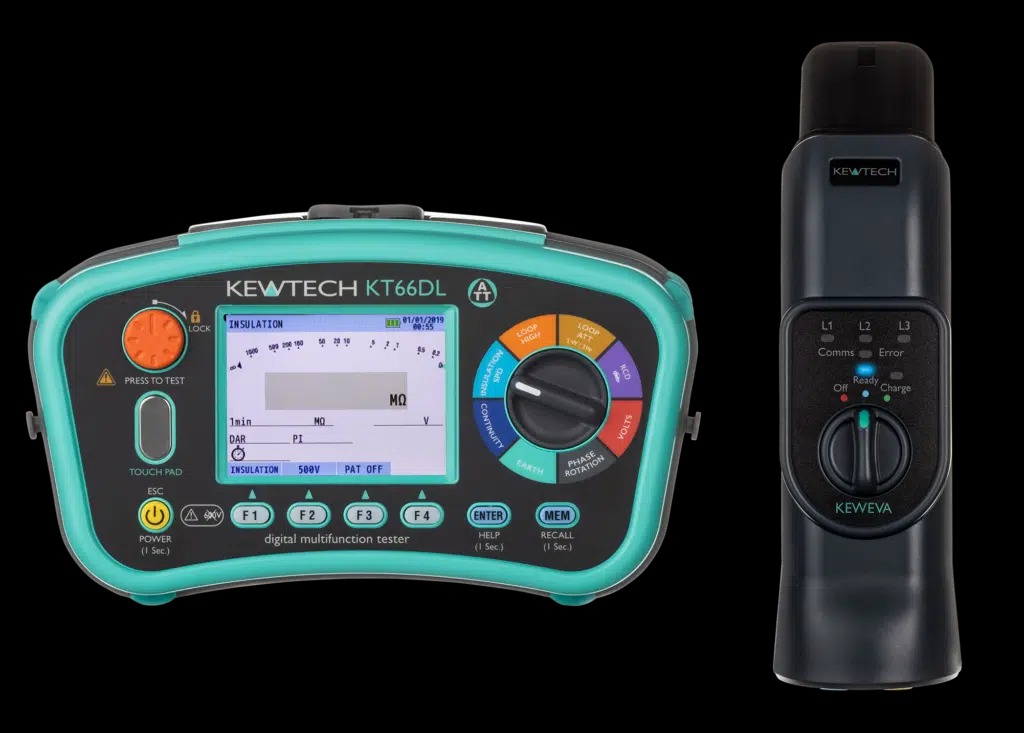

Comes complete with KT66DL, KEWEVA, soft canvas bag, mains lead, DB leads, remote test probe and software
Key Features
Two high current loop options: 25A 0.001 Ohm resolution & 6A 0.01 Ohm resolution
Two low current loop options: 3 wire & 2 wire
55V loop test capability – suitable for 110V CTE systems
EVSE loop option
RCD – Tests Type AC, ACS, A, AS, F, B, BS & EV
EVSE 6mA DC ramp and tripping time test
UC – contact voltage test
Insulation: 4 test voltages, resistance bar graph & DAR / PI functionality
Two continuity tests 200mA & 15mA
Dual display of PFC / PSC with a PFC range of 50KA
SPD testing with both DC & AC breakdown voltage displayed, 1000V range
Earth resistance 3 & 2 wire options
Phase rotation
PAT function including download
True RMS Voltage measurements 2-600V, mains frequency
Advanced memory
KEWEVA – For type 2 charge points
Comms light – auto check of control pilot (CP)
Single and three phase charger compatibility
Single dial operation
Compact unit with no cable
