Description

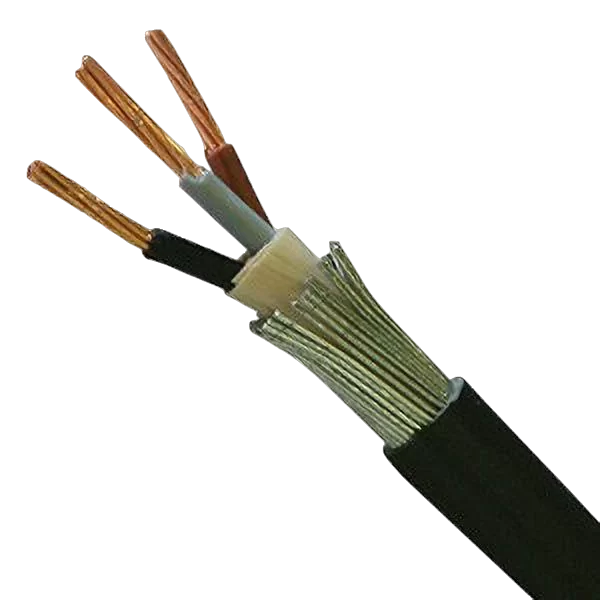

6943X 16mm² SWA (Steel Wire Armoured) cable is a 3-core power and control cable manufactured to BS 5467 and IEC 60502. It features Class 2 stranded plain copper conductors to BS EN 60228:2005, XLPE insulation, PVC bedding, galvanised steel wire armour for mechanical protection, and a black PVC outer sheath. Core identification: brown, black, and grey. Voltage rating is 0.6/1kV (600/1000V). Overall cable diameter is approximately 19.4–23.1mm, weighing around 1035kg/km, with a minimum bending radius of 12x diameter; suits a 25mm gland (BW25 indoor / CW25 outdoor) with a size 9 (C9) cable cleat. Current rating approximately 75–94A depending on installation method. Suitable for industrial wiring, mains power distribution, and auxiliary control applications in indoor, outdoor, and underground settings, including direct burial, cable ducting, tray, basket, or free air installation, and can be embedded in concrete. Sold cut to length, priced per metre.
