Description

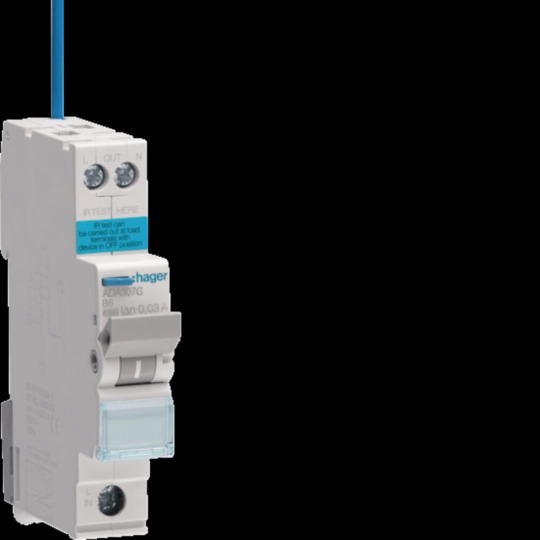

The ADA307G is a single-pole, 6A electronic RCBO with a B-type tripping curve, 6kA breaking capacity, and 30mA Type A residual current sensitivity, from Hager’s compact 1-module ADA-G range. The electronic design provides accurate, stable residual current detection with reduced susceptibility to nuisance tripping compared to electromechanical devices.
The ultra-compact 1-module format (17.7mm wide) allows maximum circuit density in consumer units and distribution boards. Type A classification ensures detection of both sinusoidal and pulsating DC residual currents from modern electronic loads. IP20 rated and suitable for DIN rail mounting.
RoHS compliant and designed for domestic and commercial circuit protection, the ADA307G is part of the ADA-G electronic RCBO range optimised for use in Irish consumer units conforming to I.S.10101 and EN 61009-1.
