Description

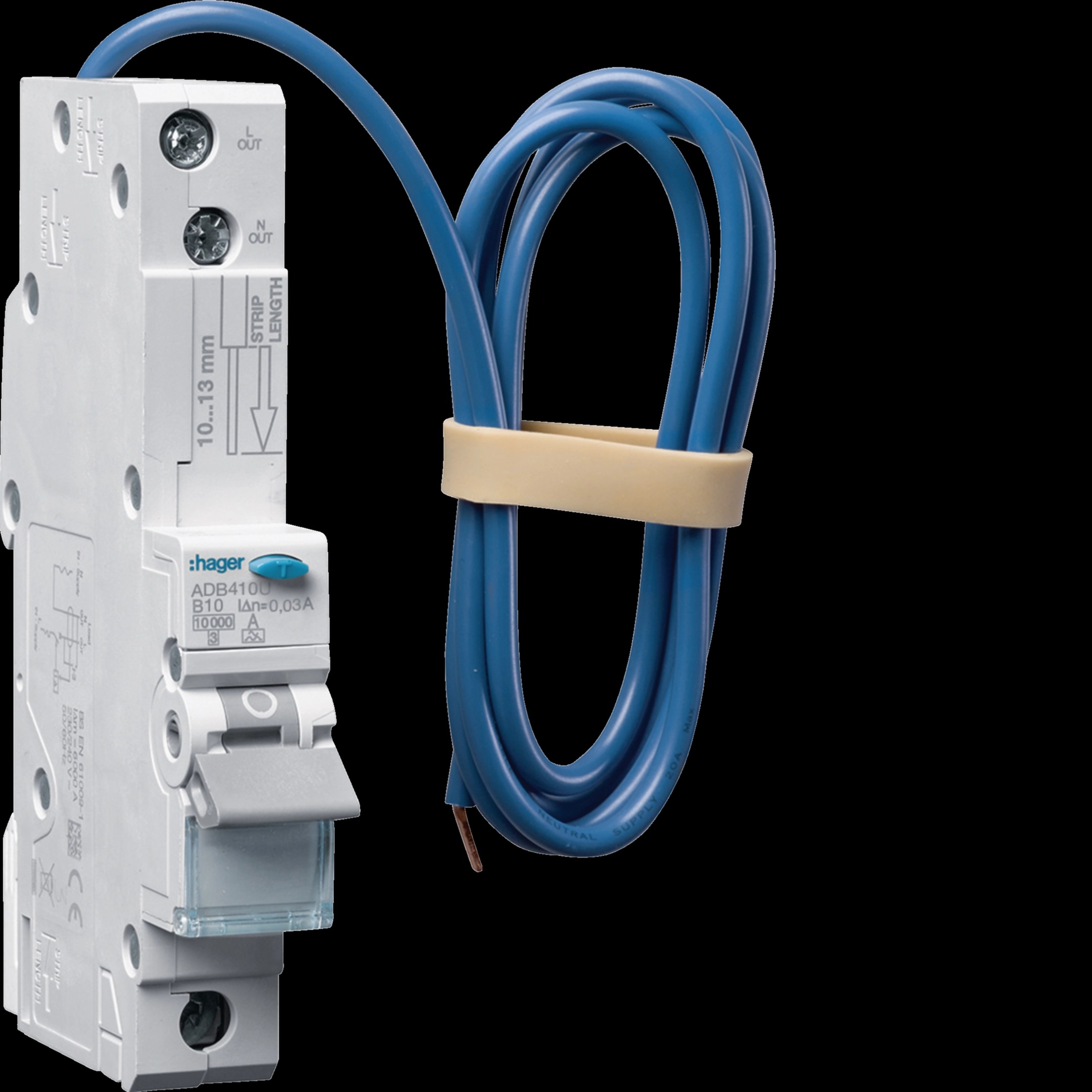

The ADB410U is a compact single-module, single-pole RCBO rated at 10A with a B-curve tripping characteristic. It offers a high short-circuit breaking capacity of 10 kA and 30mA Type A residual current protection. With a 700mm insulated neutral lead, it is designed for installation in Hager Type B distribution boards.
The B-curve characteristic makes the ADB410U ideal for general-purpose lighting circuits and low-load domestic applications. The integrated Type A RCD detects both AC and pulsating DC leakage currents. Compact 1-module design saves space in consumer units compared to separate MCB and RCD combinations.
Operating voltage is 230/240V AC at 50Hz. The device is DIN rail mountable, RoHS compliant, and IP20 rated. Dimensions: 115mm height, 17.8mm width, 70mm depth. EAN available on Hager IE catalogue.
