Description

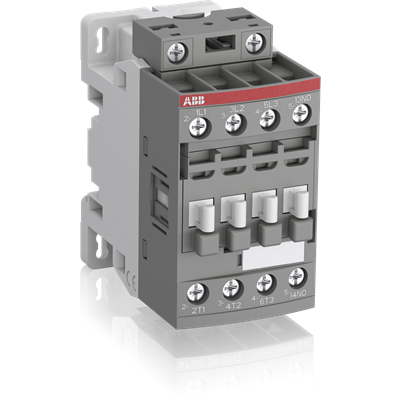

The ABB AF16-30-10 is a 3-pole industrial contactor from ABB’s AF-Line product family, designed to handle motor starting and power switching duties for loads up to 7.5 kW at 400 V AC (AC-3) or 10 hp at 480 V UL. With an AC-1 general-purpose switching rating of 30 A, this contactor covers a broad range of motor control requirements in commercial and industrial panel installations. It comes fitted with one built-in N.O. auxiliary contact and screw terminal connections, providing immediate signalling capability for control circuit integration.

The AF16-30-10 benefits from ABB’s wide-range coil technology, capable of operating on control voltages between 24 and 60 V AC (50/60 Hz) or 20 to 60 V DC, simplifying stock management and reducing the number of variants required across a product range. Its maximum voltage rating of 690 V IEC or 600 V UL, combined with compliance to IEC 60947-4-1 and UL 508, makes this contactor appropriate for international applications and supports CE-marked panel builds for the European market. The device mounts directly onto standard 35 mm DIN rail, fitting neatly into compact panel layouts.

When combined with ABB’s TF42 series electronic overload relays, the AF16-30-10 forms a co-ordinated and cost-effective motor starter assembly for motors in the 7.5 kW range. Its built-in auxiliary contact enables run indication, PLC input feedback, and interlock signalling within motor starter circuits. The AF16-30-10 is widely used in pump control panels, building services motor starters, agricultural equipment control, conveyor drives, and HVAC fan control applications where a compact, reliable, and versatile contactor is required.
