Description

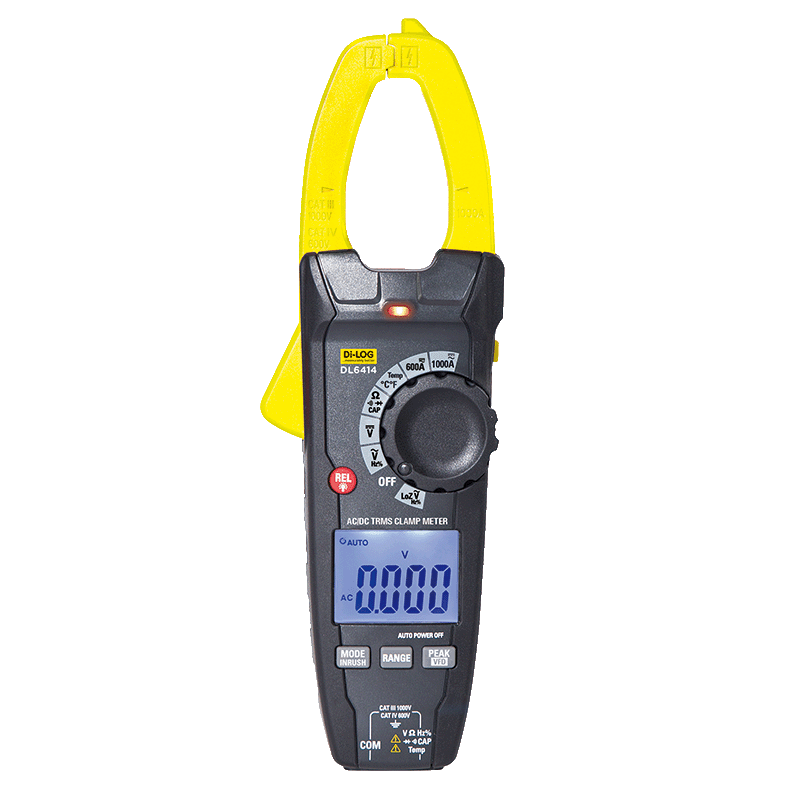

The Di-LOG DL6414 is Di-LOG’s latest top-of-range True RMS 1000A AC/DC Clamp Meter, incorporating advanced features including 1000V DC measurement capability, Low Impedance (Low Z) mode for eliminating phantom voltage readings, and Inrush Current measurement — making it suitable for the full breadth of modern electrical installation, commissioning, and maintenance work including domestic and medium commercial solar PV installations.
The Low Z mode is a key feature for modern installations where high-impedance phantom voltages from capacitive coupling can give false voltage indications — the Low Z mode applies a low-impedance measurement path that eliminates these phantom readings and gives a true indication of whether voltage is present or not. The Inrush current mode captures the high start-up currents of motor loads for assessing fuse and circuit breaker suitability.
The DL6414’s comprehensive specification combines True RMS accuracy, DC measurement, Low Z, and Inrush into the most capable clamp meter in the DiLOG range — a premium instrument for electricians who commission and maintain complex modern electrical installations.
