Description

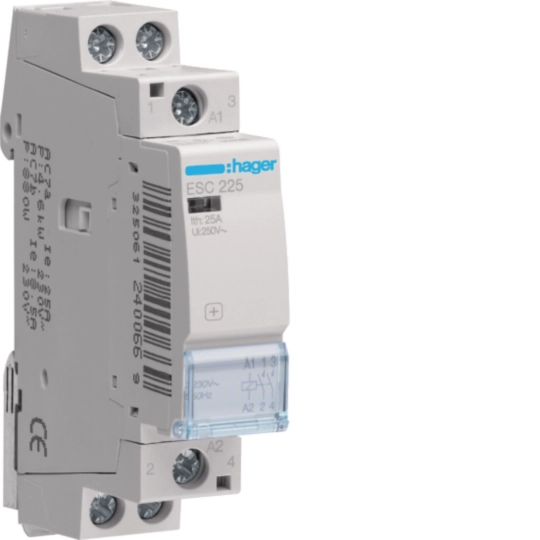

The ESC225 is a modular DIN rail contactor rated at 25A with two normally open (2NO) poles, controlled by a 230V AC 50Hz coil. It is designed for switching lighting, heating, and small motor loads in residential and commercial distribution boards, offering reliable remote or automated circuit control.
Occupying a single 17.5mm module on a DIN rail, the ESC225 is compact enough for use in standard consumer units and small distribution boards. The 25A contact rating supports loads up to 4.6kW (AC1), and the device is suitable for use with time switches, motion detectors, or building management systems.
The ESC225 is suitable for use on 230V AC single-phase networks and is designed for 60,000 switching operations. It is RoHS compliant and compatible with a range of Hager control accessories.
