Description

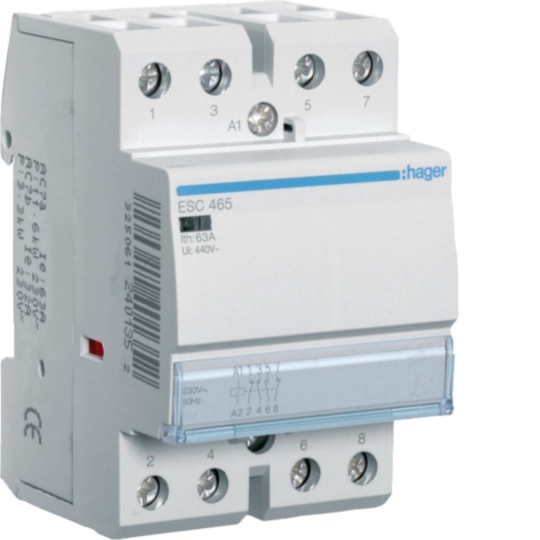

The ESC465 is a 63A, 4-pole modular contactor with three normally open and one normally closed pole (3NO+1NC), controlled by a 230V AC coil. The mixed configuration enables simultaneous switching of three load circuits alongside one interlocking or signalling circuit in the opposite state, suitable for advanced control schemes.
The 63A rating accommodates large three-phase loads, and the 3NO+1NC contact arrangement is particularly useful for motor control, multi-zone lighting interlock, or building management applications where a confirmation or inhibit signal is needed alongside the main switching action.
RoHS compliant and designed for 230V AC control, the ESC465 occupies 3 DIN rail modules and is part of Hager’s high-current modular contactor range for commercial and industrial installations.
