Description

Overview

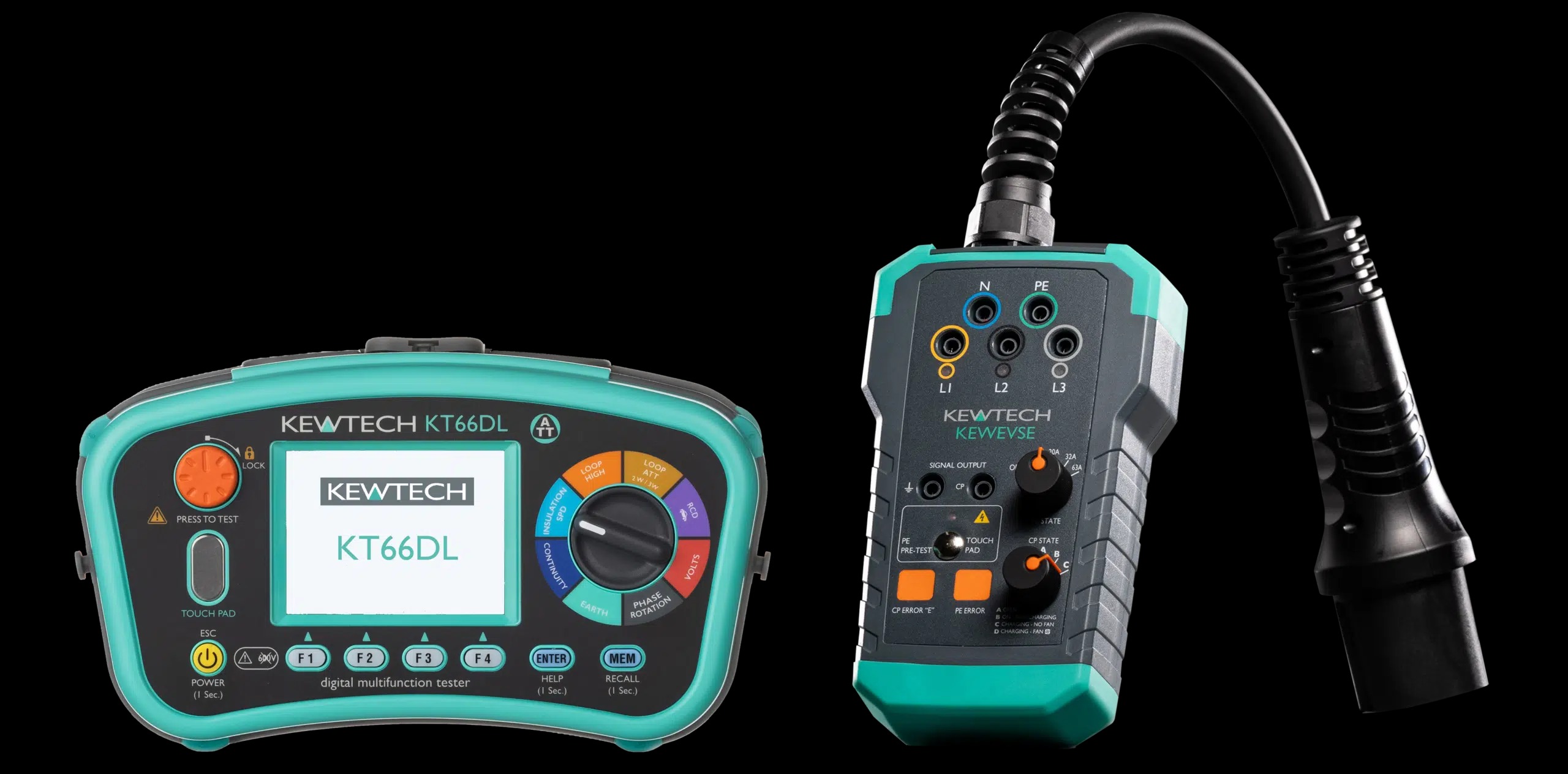

The KT66EV multifunction tester kit is your ultimate EV testing solution.

This kit provides a comprehensive solution for all installation testing, especially those with electrical vehicle charging points. Whether these are installed with Type B RCDs or with 6mA residual direct current devices and in either TN or TT configurations, this multifunction tester kit gives you the flexibility to test for electrical safety as well as EVSE functionality.

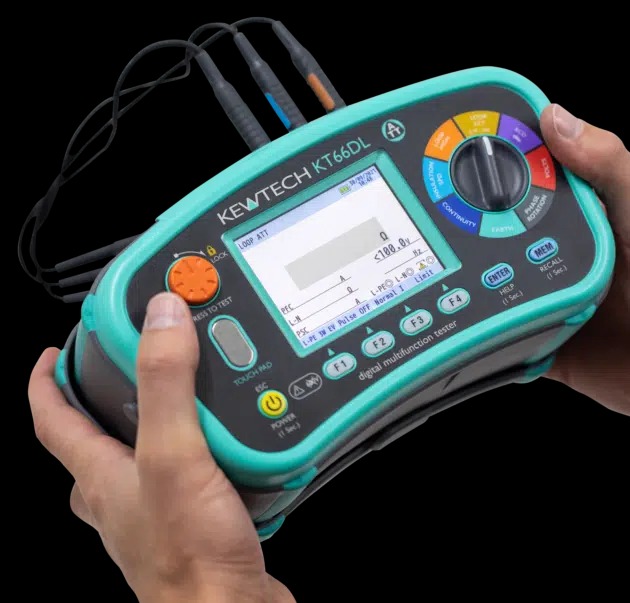

The KT66DL comes with CD-ROM software but if you would prefer to download the KEW REPORT software you can do so here…Download Software.

Key Benefits
Large colour dot matrix screen
Established easy to use interface with one rotary dial and four function keys
Includes KEWEVSE adapter for testing and installation of EV charging points
Simultaneous display of L-N, L-N, L-E voltage (TRMS)
Max Zs tables for current and old standards
Comprehensive RCD function including type EV & B and variable RCD test
Three modes of starting a test: single press of the test button, continuous testing and by test button in the test probe
Advanced memory – assigns DB, circuit no. ad type of test i.e. Zs or Ze
Help display
Touch voltage pad with selectable limits
Padded neck strap
Comes complete with KT66DL, KEWEVSE, soft canvas bag, mains lead, DB leads, remote test probe and software
Key Features
Two high current loop options: 25A 0.001 Ohm resolution & 6A 0.01 Ohm resolution
Two low current loop options: 3 wire & 2 wire
55V loop test capability – suitable for 110V CTE systems
EVSE loop option
RCD – Tests Type AC, ACS, A, AS, F, B, BS & EV
EVSE 6mA DC ramp and tripping time test
UC – contact voltage test
Insulation: 4 test voltages, resistance bar graph & DAR / PI functionality
Two continuity tests 200mA & 15mA
Dual display of PFC / PSC with a PFC range of 50KA
SPD testing with both DC & AC breakdown voltage displayed, 1000V range
Earth resistance 3 & 2 wire options
Phase rotation
PAT function including download
True RMS Voltage measurements 2-600V, mains frequency
Advanced memory

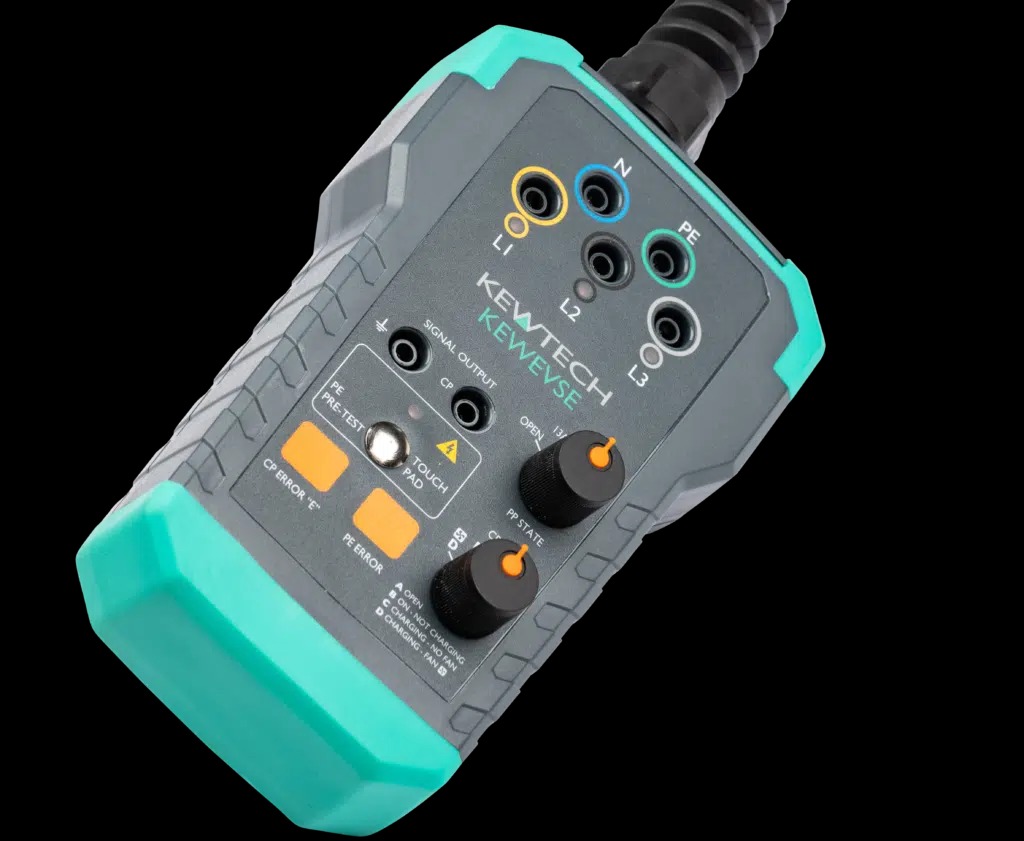

KEWEVSE – PE Pre-test
PP simulation & CP states A, B, C, D
CP Error / PE Error / Earth Fault
