Description

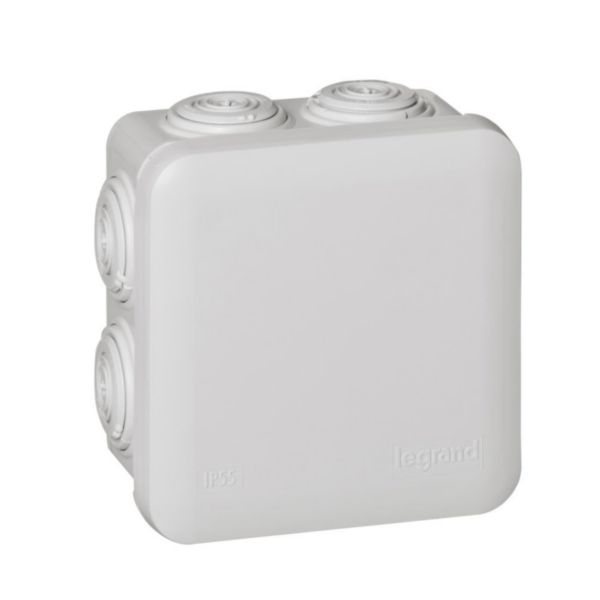

The Legrand 092012 is a popular 80×80×45mm square Plexo junction box rated IP55 and IK07, supplied with 7 integrated direct-entry graduated membrane glands that accommodate a wide range of cable diameters without the need for separate gland fittings. Manufactured from grey RAL7035 self-extinguishing polystyrene with resistance to incandescent wire at 650°C, it is designed for weatherproof cable junctions in domestic, commercial, agricultural, and light industrial installations. The snap-on cover with captive sealable screw ensures a reliable IP55 seal.

The 7 graduated membrane glands provide flexible and convenient cable entry, eliminating the need for additional accessories in most standard wiring installations. The 092012 operates from -25°C to +40°C and is halogen-free, meeting enhanced fire safety requirements. It is widely used as the standard junction box for final circuit and sub-main wiring across a broad range of applications including retail, commercial, agricultural, and outdoor infrastructure installations. Part of Legrand’s comprehensive Plexo range, it is supported by a full selection of complementary accessories.
