Description

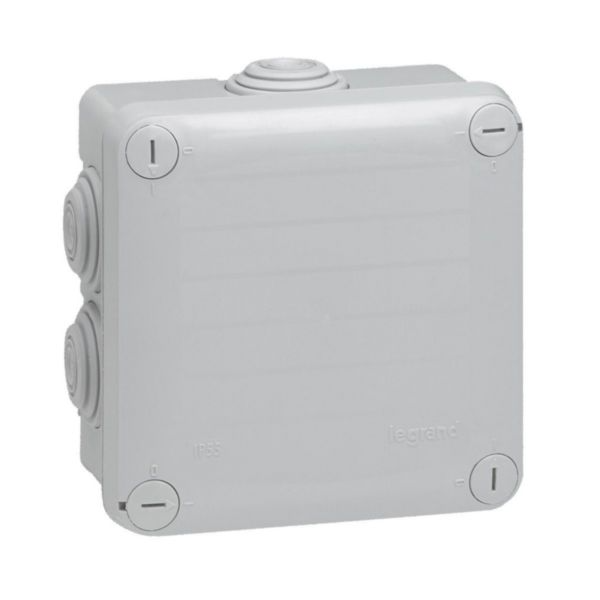

The Legrand 092022 is a 105×105×55mm square Plexo junction box rated IP55 and IK07, supplied with 7 integrated direct-entry graduated membrane glands for convenient cable entry. The larger 105mm format provides additional internal space for more complex wiring arrangements, making it ideal for loop-in lighting joints, sub-main junctions, and installations with multiple cable entries. Manufactured from grey RAL7035 self-extinguishing polystyrene with resistance to incandescent wire at 650°C, it ensures reliable fire safety.

The 7 graduated membrane glands accommodate a wide range of cable diameters and simplify installation by eliminating the need for additional cable gland fittings. Operating from -25°C to +40°C and halogen-free, the 092022 conforms to relevant IP and IK standards for both indoor and semi-exposed outdoor use. It is widely used in commercial, agricultural, and light industrial electrical installations as a versatile weatherproof junction box, and forms part of Legrand’s comprehensive Plexo range.
