Description

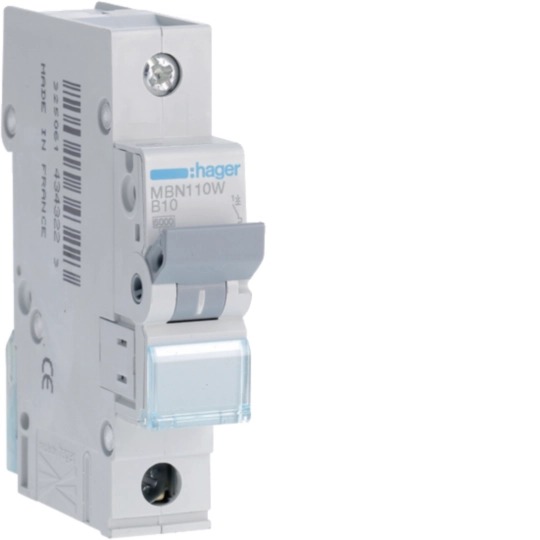

The MBN110W is a single-pole, 10A MCB with a B-type tripping curve, 6kA breaking capacity, and QuickConnect push-in terminals. The push-in connection system enables fast, reliable conductor insertion without tools, significantly reducing installation time compared to screw-terminal MCBs.
The 10A B-type characteristic suits lighting circuits and small resistive loads. The 1-module DIN rail format is standard for Irish consumer units and commercial distribution boards. Compatible with MBN-series comb busbars.
RoHS compliant, the MBN110W is part of Hager’s MBN QuickConnect MCB range. It is widely used in residential consumer units in Ireland and is fully compatible with the ADA-G electronic RCBO range for individual circuit protection.
