Description

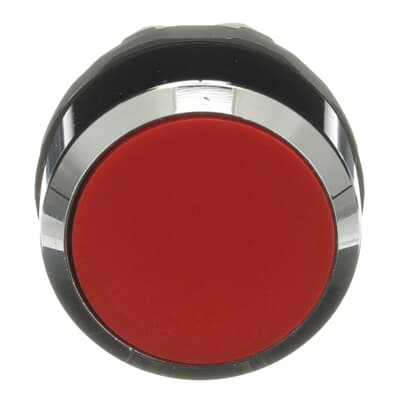

The ABB MP1-30R is a 22 mm flush-head, maintained-action, non-illuminated pushbutton with a red actuator and chrome metal bezel, forming part of ABB’s M2 modular operator component family. The red colour is the international standard for stop, off, or de-energise command functions in industrial control panels and machine operator interfaces, making the MP1-30R the standard component for motor stop, machine off, and process shutdown commands. The maintained action holds the pushbutton in the operated position after release, appropriate for latching stop or off commands until deliberately reset. No contact block is included; MCB or MCBH modules are added separately.

Compliant with IEC 60947-5-1, the MP1-30R accepts standard 22 mm panel mounting and features a flush head design that reduces accidental actuation. The chrome metal bezel provides industrial-grade mechanical durability and a professional front-panel appearance. It is compatible with ABB’s full MCB and MCBH contact block range, allowing the user to specify the exact contact complement required by the control circuit, from a single N.O. or N.C. contact to a multi-contact assembly.

The MP1-30R is one of the most frequently specified pushbuttons in ABB’s M2 operator system, used across motor control panels, machine tool operator interfaces, process plant local control stations, conveyor control panels, and building services control boards. Its red maintained-action actuator is a universally recognised stop command interface that ensures intuitive operation by plant and machine operators. As part of ABB’s M2 system, it integrates seamlessly with other M2 operator components for consistent and professional panel front design.
