Description

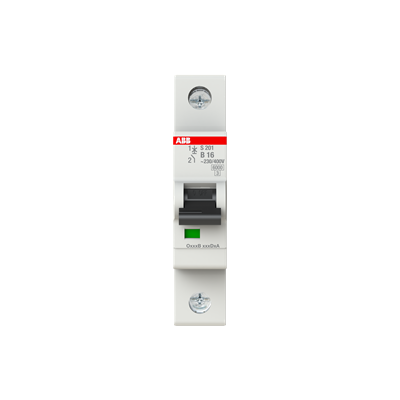

The ABB S201B16 is a 1-pole Type B miniature circuit breaker rated at 16 A, part of ABB’s System pro M compact S200 range. It is designed to provide both overload and short-circuit protection for single-phase circuits in residential, commercial, and light industrial distribution boards. The Type B tripping characteristic provides magnetic (instantaneous) trip for fault currents between 3 and 5 times the rated current, making it appropriate for circuits with resistive or slightly inductive loads such as lighting circuits, heating elements, and general socket outlets where the connected load does not produce high inrush currents on switching.

Compliant with IEC 60898-1 and EN 60898-1, the S201B16 has a rated voltage of 230/400 V AC and a short-circuit capacity of 6 kA at 230 V, which satisfies the requirements of the vast majority of residential and light commercial distribution circuits. The device features a 17.5 mm per pole width, the narrowest in the S200 family, enabling high circuit density within consumer units and distribution boards. A clear trip indication window shows the tripped state, and the rocker-type operating handle provides reliable manual operation and reset.

The S201B16 is fully compatible with ABB’s System pro M compact accessories, including auxiliary contact blocks, remote tripping shunt releases, residual current add-on modules (DS200 family), and busbar accessories for multi-circuit board assembly. It mounts on standard 35 mm DIN rail and is used extensively in domestic and commercial consumer units, distribution boards, and industrial panel circuit protection throughout Ireland and Europe. ABB’s S200 series is one of the most widely specified MCB families in the European electrical industry, trusted for its reliability and compliance with current installation standards.
