Description

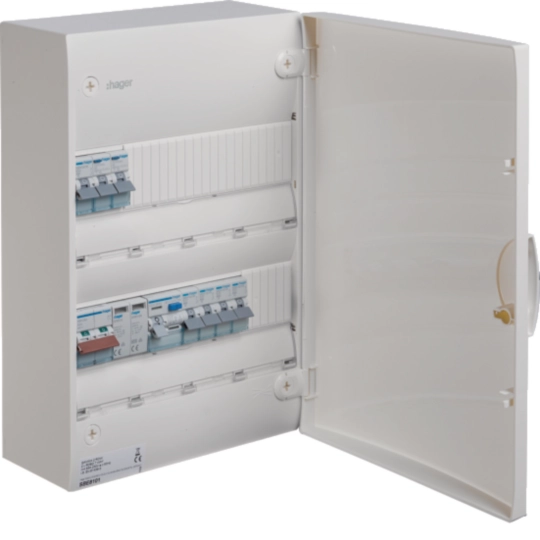

The SBE8101SPD is a pre-assembled Hager Gamma 2-row consumer unit equivalent to the SBE8101 but with the addition of a Type 2 Surge Protection Device (SPD). It includes a 80A isolating switch, 63A RCCB, 4x20A MCBs, 1x32A MCB, 2x6A RCBOs, and an SPD in a 26-module, 2-row GD213H enclosure.
The inclusion of the SPD protects all connected circuits from voltage transients caused by lightning and switching surges, providing enhanced protection beyond standard circuit breaker requirements. Supplied fully assembled and wired, compliant with I.S.10101.
Part of Hager’s Irish Gamma consumer unit range with integrated surge protection, the SBE8101SPD is IP40 rated with door fitted and is designed for surface-mounted installation in Irish residential premises.
