Description

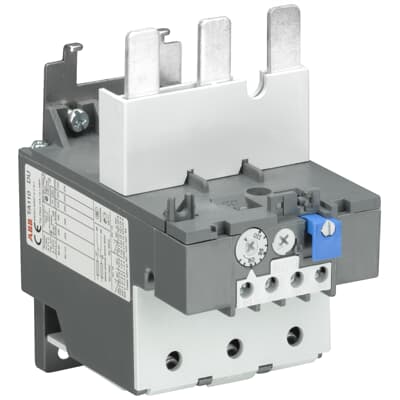

The ABB TA110DU110 is a thermal overload relay from ABB’s TA-DU series, providing motor overload protection with a current setting range of 80–110 A. Designed for direct mounting onto compatible ABB A95 to A110 contactors, this relay monitors the current flowing through the motor circuit and initiates a trip if the current exceeds the set value for a time period determined by the thermal model built into the relay. This thermal replica accurately simulates the heating of the motor windings, providing reliable protection against overload conditions that would otherwise lead to premature motor failure through insulation degradation.

The TA110DU110 complies with IEC 60947-4-1 and provides Class 10A tripping characteristics, appropriate for standard squirrel cage induction motors. The adjustable current setting dial covers the range from 80 to 110 A, enabling precise calibration to the motor’s nameplate full-load current. A built-in trip indicator provides local fault indication, and a manual or automatic reset button allows the relay to be reset after a protective operation. Phase failure sensitivity is incorporated as standard, ensuring the relay responds to single-phasing conditions that would cause a conventional three-phase thermal relay to underrespond due to the reduction in average current.

The TA110DU110 mounts directly onto compatible ABB A95 to A110 contactors, forming a compact and co-ordinated motor starter assembly. Auxiliary contacts are available to provide trip feedback signals to PLCs, SCADA systems, or remote alarm circuits. The relay is used in motor control panels across a wide range of applications including pump drives, fan starters, conveyor systems, and industrial machinery throughout Ireland and Europe, providing reliable thermal protection for three-phase induction motors operating within the 80–110 A current range.
