Description

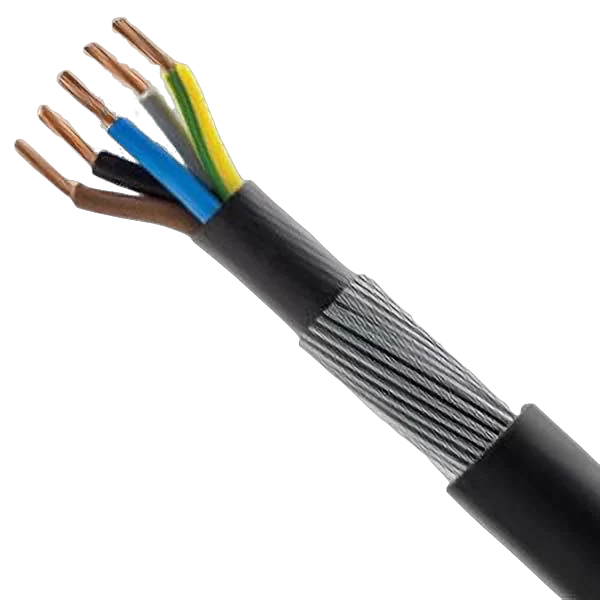

6945X 95mm² SWA (Steel Wire Armoured) cable is a 5-core power cable manufactured to BS 5467, IEC/EN 60502-1, and IEC/EN 60228 standards. It features stranded plain annealed copper conductors, XLPE insulation, PVC bedding, galvanised steel wire armour for mechanical protection, and a black PVC outer sheath with numbered or coloured cores. Rated 600/1000V, with a maximum long-term operating temperature of 90°C (installation not below 0°C) and UV/chemical-resistant XLPE insulation. Suitable for three-phase electrical applications, industrial power distribution, mains electricity, and incoming supply, and can be used for direct burial underground or attached to structures/buildings using CC18 cable cleats. Requires a 50mm gland (BW50 indoor / CW50 outdoor). Also suitable for power networks and general internal/external mains wiring. Sold cut to length, priced per metre.
