Description

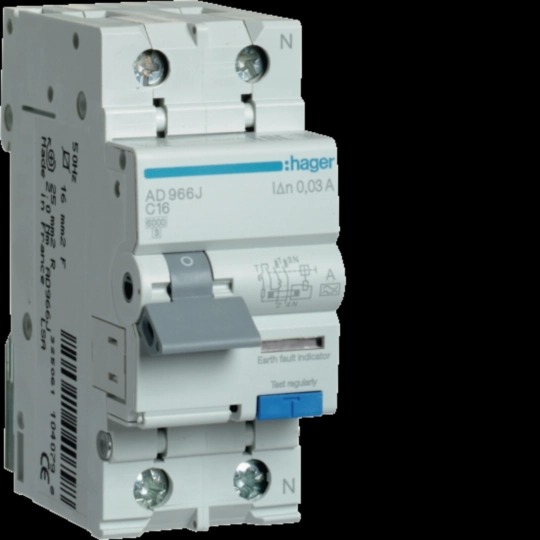

The AD966J is a 2-module, 2-pole RCBO with a C-curve tripping characteristic and a rated current of 16A. It provides a short-circuit breaking capacity of 6 kA and residual current protection at 30mA Type A sensitivity. The device is suitable for circuits requiring protection against both overcurrent and earth leakage faults.
The 16A C-curve rating makes this device ideal for ring or radial circuits supplying socket outlets in commercial settings, as well as HVAC equipment and other motor-driven loads. It supports conductor cross-sections up to 16mm² flexible and 25mm² rigid.
Compliant with RoHS and IP20 rated, the AD966J mounts on standard DIN rail. It operates between -25°C and +40°C. Packaging is 1 piece per unit.
