Description

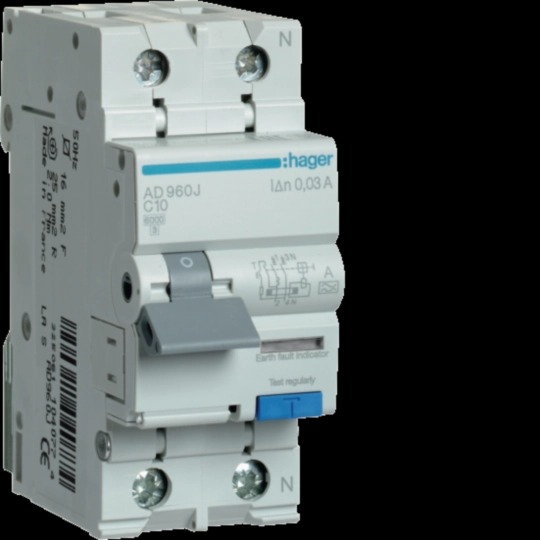

The AD960J is a compact 2-pole RCBO rated at 10A with a C-curve characteristic and 6 kA breaking capacity at 240V AC. It provides combined protection against overcurrents and residual earth fault currents with a sensitivity of 30mA Type A. The device occupies 2 modules on a DIN rail and features screw terminal connections and biconnect bottom terminals.
The C-curve is well suited for circuits with motors, pumps, or other loads that produce high inrush currents on startup. This 10A variant is commonly used in commercial and light industrial environments where standard B-curve devices may trip unnecessarily. Conductor cross-section range is 1–16mm² flexible and 1–25mm² rigid.
The AD960J operates across a temperature range of -25°C to +40°C and is RoHS compliant. Dimensions are 83mm height, 35mm width, 68mm depth. EAN: 3250611040774.
