Description

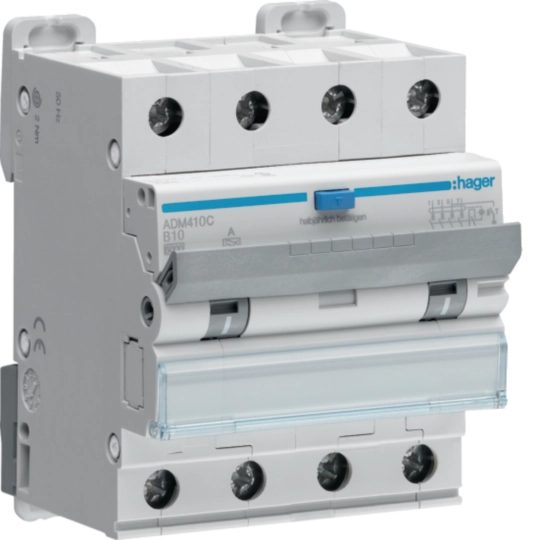

The ADM410C is a 4-pole RCBO with a B-curve tripping characteristic rated at 10A and a 6 kA short-circuit breaking capacity. It provides 30mA Type A residual current protection across all four poles, making it suitable for three-phase plus neutral circuits in commercial and light industrial applications.
This 4-pole configuration protects three-phase loads such as small motors, compressors, or balanced heating systems against both overcurrent faults and earth leakage. The B-curve is appropriate for general-purpose circuits without significant inrush current.
The ADM410C mounts on standard DIN rail and is IP20 rated. It is compliant with IEC 61009 standards and features a compact 4-module housing. Operating voltage is 230/400V AC.
