Description

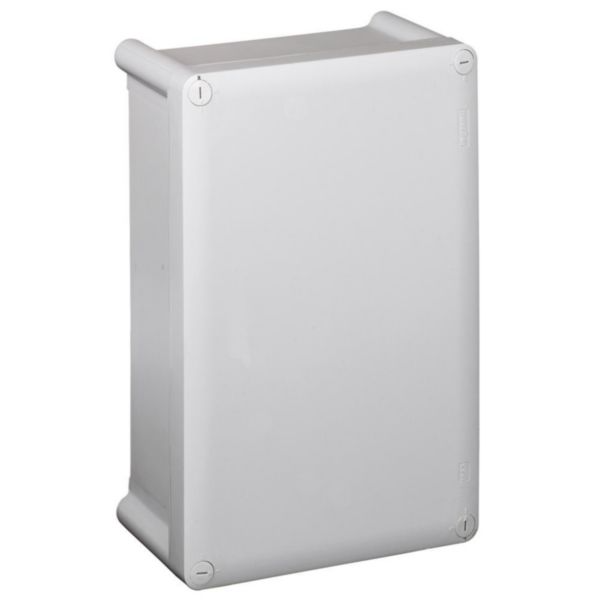

The Legrand 035950 is a medium-compact Plexo plastic industrial enclosure rated IP55 and IK07, with external dimensions of 180×140×86mm. Made from grey RAL7035 self-extinguishing polypropylene, it is suitable for use in a broad range of industrial, commercial, and utility installations where dust and water jet protection is required. The opaque cover with quarter-turn latch allows quick, tool-free access, and smooth sides permit cable entry at any point via knock-outs or cable glands.

Internal mounting of a DIN rail or mounting plate (sold separately) enables the neat installation of small terminal blocks, relays, and other panel components. Wall mounting is achieved via four oblong fixing holes in the base or using optional wall-mounting lugs. The 035950 is self-extinguishing to IEC 60695-2-11 and conforms to IEC/EN 60529 for IP55 protection. It is a versatile enclosure for junction boxes, instrument housings, and small control panels in manufacturing, process control, and building services applications.
