Description

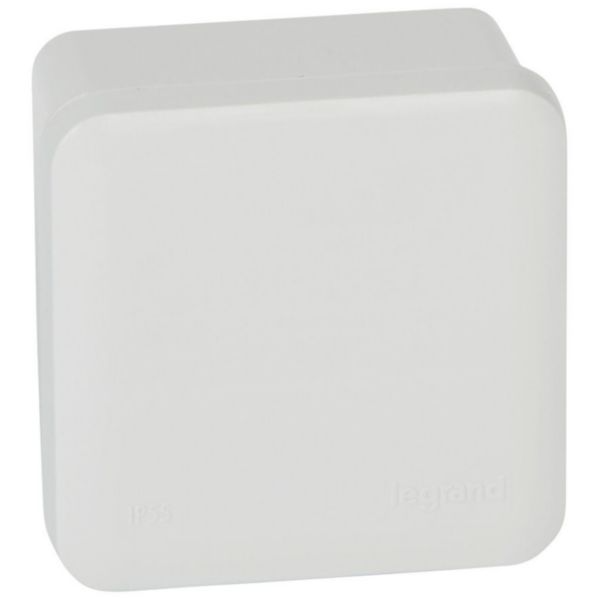

The Legrand 092011 is an 80×80×45mm square Plexo junction box rated IP55 and IK07, featuring smooth exterior faces without pre-formed entry points, allowing cable entry positions to be determined freely on site. Manufactured from grey RAL7035 self-extinguishing polystyrene rated to withstand incandescent wire at 650°C, it is designed for surface-mounting in a wide range of indoor and semi-exposed outdoor environments. The clip-on cover provides a reliable IP55 seal when secured with the captive sealable screw.

The smooth-face design is particularly useful where cables enter at non-standard positions or where the installer wishes to determine entry point locations themselves using separate cable glands or knockout tools. Operating from -25°C to +40°C, this junction box is suitable for standard wiring circuits in domestic, commercial, agricultural, and light industrial applications. It is halogen-free and forms part of Legrand’s extensive Plexo junction box and accessories range.
