Description

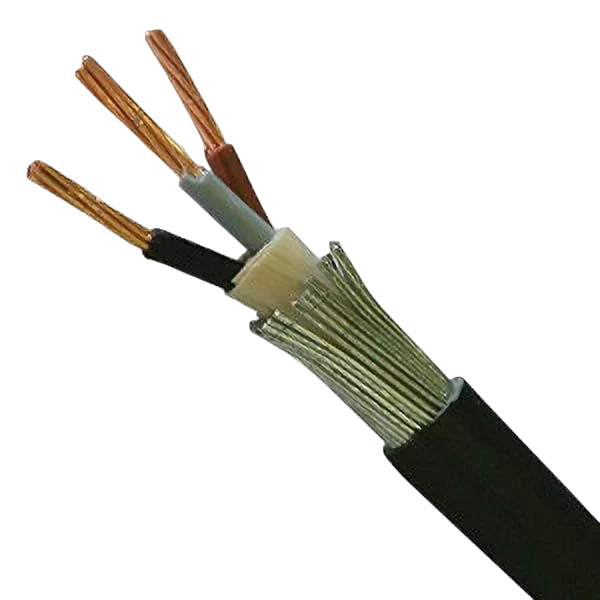

6943X 35.0mm² SWA (Steel Wire Armoured) cable is a 3-core power and auxiliary control cable manufactured to BS 5467, BASEC approved and CE marked. It features stranded plain copper conductors, XLPE insulation, PVC bedding, galvanised steel wire armour for mechanical protection, and a black PVC outer sheath. Core identification: brown, black, and grey. Voltage rating is 0.6/1kV (600/1000V). Overall cable diameter is approximately 27.7mm, weighing around 2120kg/km, and suits a 32mm gland (BW32 indoor / CW32 outdoor) with a size 12 (C12/CC10) cable cleat. Suitable for auxiliary control, mains power distribution, and industrial applications in indoor, outdoor, and underground settings, including direct burial, cable ducting, tray, basket, or free air installation. Sold cut to length, priced per metre.
