Description

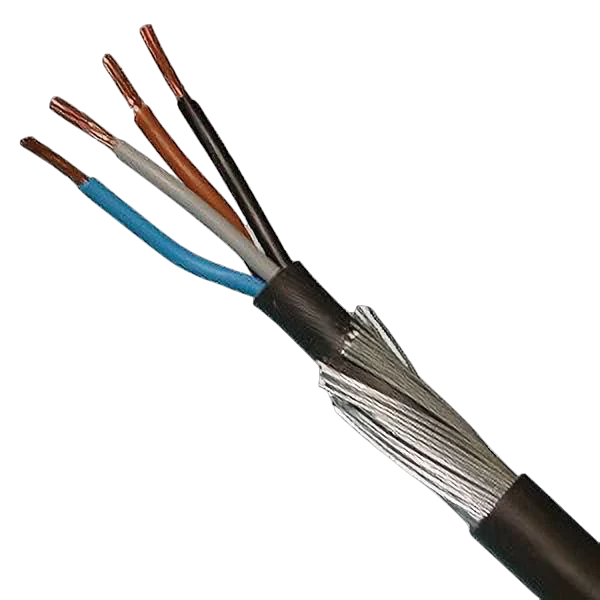

6944X 16mm² SWA (Steel Wire Armoured) cable is a 4-core power and control cable manufactured to BS 5467 and IEC 60502, BASEC approved. It features a Class 2 stranded plain copper conductor to BS EN 60228:2005, XLPE insulation, PVC bedding, galvanised steel wire armour for mechanical protection, and a black PVC outer sheath. Core identification: blue, brown, black, and grey. Voltage rating is 600/1000V. Overall cable diameter is approximately 21.8–26.3mm, weighing around 1240kg/km, with a minimum bending radius of 12x diameter; suits a 25mm gland (BW25 indoor / CW25 outdoor) with a CC9/CC10 cable cleat. Current rating approximately 94–164A. Suitable for a wide variety of three-phase circuits and applications, industrial wiring, mains power distribution, and outdoor garden lighting installations, in indoor, outdoor, and underground settings, including direct burial, cable ducting, tray, basket, or free air installation, and can be embedded in concrete. Sold cut to length, priced per metre.
