Description

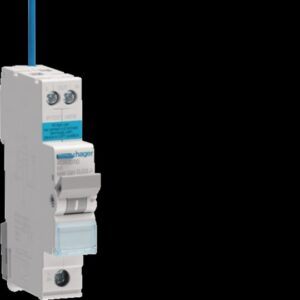

The AD916J is a 2-pole, 16A RCBO with a B-type tripping curve, 6kA breaking capacity at 240V AC, and 30mA Type A residual current sensitivity. The 16A rating is one of the most commonly used values for socket-outlet and lighting circuits in residential and commercial installations.
Type A classification ensures detection of both AC and pulsating DC fault currents. Screw terminals accept flexible conductors up to 16mm² and rigid conductors up to 25mm². The device provides combined overcurrent and earth fault protection in a compact 2-module format.
IP2X rated, RoHS compliant, and rated for 2,000 electrical and 2,000 mechanical operations. Suitable for standard residential and commercial circuit protection conforming to IEC 61009-1.
