Description

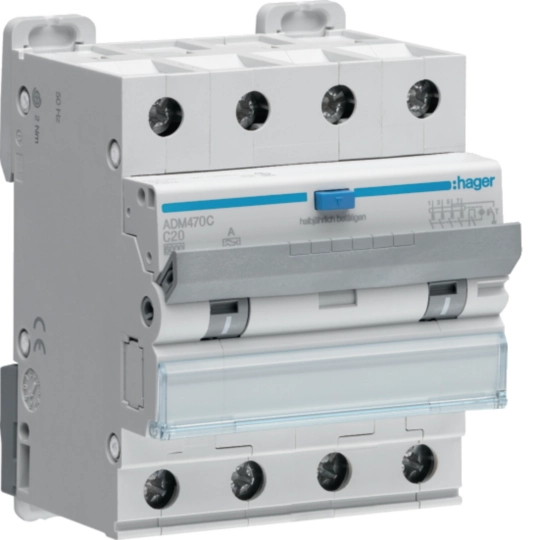

The ADM470C is a 4-pole RCBO rated at 20A with a C-curve tripping characteristic and 6 kA breaking capacity. It delivers 30mA Type A residual current protection for three-phase plus neutral circuits, particularly where moderate inrush currents are present.
The 20A C-curve rating makes the ADM470C suitable for three-phase circuits powering larger commercial appliances, small industrial motors, or HVAC units. Type A sensitivity ensures detection of both AC and pulsating DC fault currents.
The device is housed in a compact 4-module DIN rail enclosure. It is IP20 rated, operates at 230/400V AC, and is compliant with IEC 61009 and RoHS requirements.
