Description

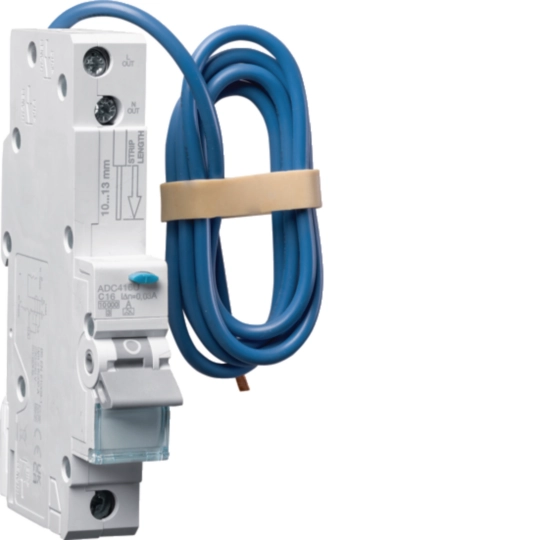

The ADC416U is a single-module, 1-pole RCBO rated at 16A with C-curve tripping and a 10 kA short-circuit breaking capacity. It features 30mA Type A residual current sensitivity and is a direct replacement for the ADA166U. The compact 1-module format is optimised for space-efficient distribution board layouts.
The 16A C-curve is widely used for ring mains supplying socket outlets in commercial environments, as well as motor-driven loads. Type A sensitivity covers AC and pulsating DC residual currents, ensuring protection for modern electronic equipment.
Rated at 230/240V AC, the ADC416U is intended for Hager Type B distribution boards. It is IP20 rated, DIN rail mountable, and RoHS compliant.
