Description

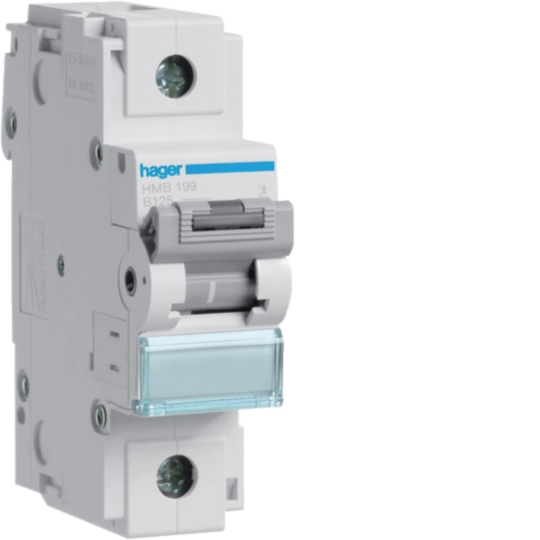

The HMB199 is a single-pole, 125A MCB with a B-type tripping curve and a 15kA breaking capacity, the highest-rated device in the HMB single-pole range. It is designed for protecting high-current single-phase feeders and sub-main circuits in commercial and industrial distribution systems.
At 125A, this device is appropriate for protection of large incomer circuits in distribution boards, including those supplying sub-distribution boards or large single-phase loads such as electric vehicle chargers or industrial heating equipment. The 1.5-module format keeps panel space consumption to a minimum.
RoHS compliant and rated IP20, the HMB199 is compatible with the same auxiliary contact and shunt trip accessories as others in the HMB range, and operates across a temperature range of -25°C to +70°C.
