Description

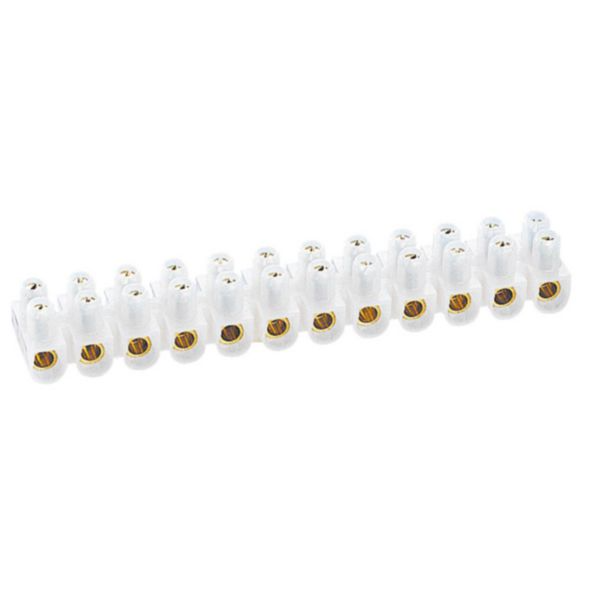

The Legrand 034227 is the largest standard Nylbloc terminal strip in the white range, providing 12 separable connection terminals each rated for 2×16mm² conductors and a maximum current of 76A. It is designed for high-current domestic and light industrial applications including electric shower circuits, EV charging connections, and main sub-distribution wiring. Manufactured from self-extinguishing, flame-retardant polypropylene to EN 60998-2-1, it has an insulation voltage of 250V and is rated for use up to 400V when integrated within a product series conforming to EN 60664-1.

The pre-loosened captive screws enable fast and efficient conductor termination, while the separable terminal design allows the strip to be customised to the exact number of connections required on site. Compatible with Legrand trunking and junction box accessories for neat panel layouts, the 034227 is a dependable and professionally finished connection solution for high-current circuit wiring. Its operating temperature range of -25°C to +100°C ensures reliable performance across all standard electrical installation environments.
