Description

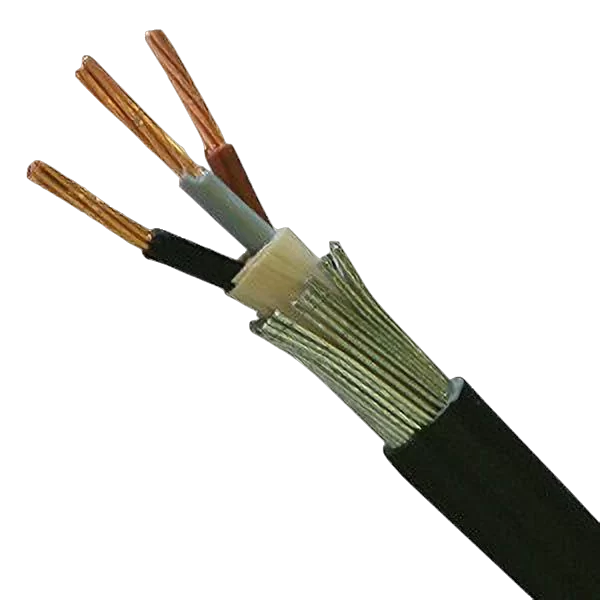

6943X 10mm² SWA (Steel Wire Armoured) cable is a 3-core power and control cable manufactured to BS 5467 and IEC 60502. It features Class 2 stranded plain copper conductors to BS EN 60228:2005, XLPE insulation, PVC bedding, galvanised steel wire armour for mechanical protection, and a black PVC outer sheath. Core identification: brown, black, and grey. Voltage rating is 0.6/1kV (600/1000V), with an operating temperature range of 0°C to +90°C and a minimum bending radius of 12x diameter. Overall cable diameter is approximately 17.2–18.9mm, weighing around 780kg/km, and suits a 20mm gland (BW20 indoor / CW20 outdoor) with a size 7 (C7) cable cleat. Current rating approximately 58–73A depending on installation method. Suitable for auxiliary control, mains power distribution, and general wiring in indoor, outdoor, and underground applications, including direct burial, cable ducting, tray, basket, or free air installation, and can be embedded in concrete. Sold cut to length, priced per metre.
