Description

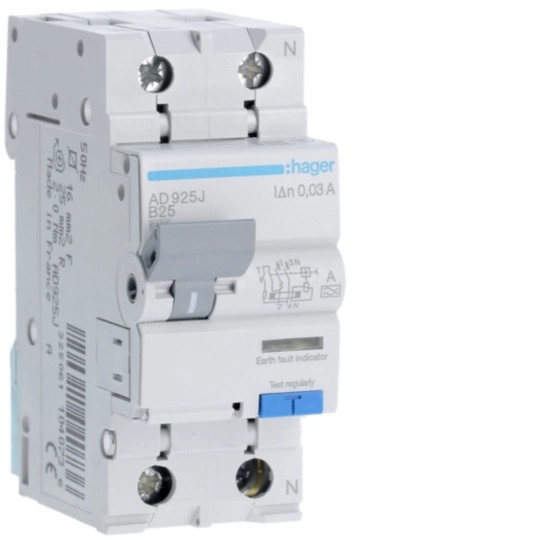

The AD925J is a 2-pole, 25A RCBO with a B-type tripping curve, 6kA breaking capacity at 240V AC, and 30mA Type A residual current sensitivity. The 25A rating is suitable for ring main circuits, electric showers at lower ratings, or other higher-current single-phase loads.
Type A classification ensures reliable detection of both sinusoidal AC and pulsating DC residual fault currents generated by modern electronic equipment. Screw terminals accept flexible conductors up to 16mm² and rigid conductors up to 25mm².
Occupying 2 DIN rail modules, rated IP2X and RoHS compliant, the AD925J provides standard combined overcurrent and earth leakage protection for residential and commercial applications.
