Description

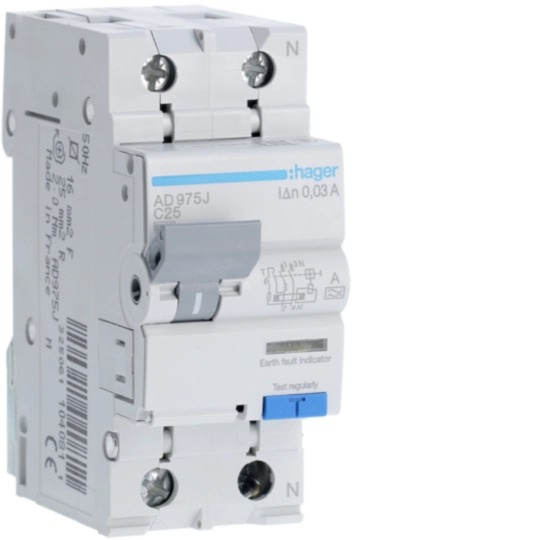

The AD975J is a 2-pole RCBO rated at 25A with a C-curve characteristic and 6 kA short-circuit breaking capacity. Residual current protection is 30mA Type A, providing reliable detection of both AC and pulsating DC leakage. The device is housed in a compact 2-module form factor suitable for DIN rail installation.
This 25A variant is suited to circuits supplying cookers, hobs, or other high-power appliances in domestic and commercial settings. The C-curve helps prevent nuisance tripping during startup. Screw terminals accommodate conductor cross-sections of 1–16mm² flexible and 1–25mm² rigid.
Rated for use between -25°C and +40°C, the AD975J is RoHS compliant and IP20 rated. It is packaged individually with EAN starting with 325061.
